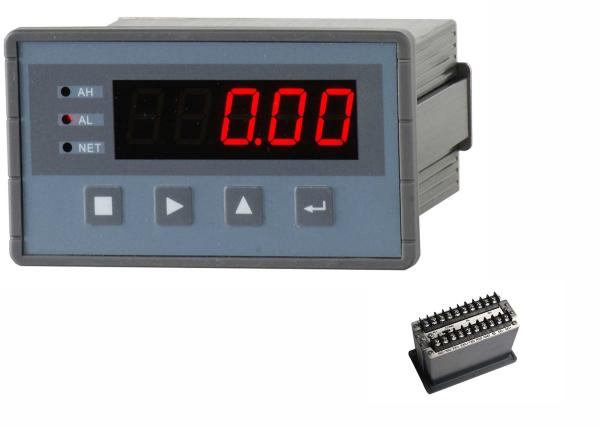

Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

Name: Mini Crane Weight Indicator Smart Load Batch Controller Overload Protection
Brand: Supmeter
Price: 1 USD

Best Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection wholesale

Brand Name : Supmeter

Model Number : BST106-B60S[C]

Certification : CE

Place of Origin : China

MOQ : 5pc

Price : negotiation

Payment Terms : Western Union, T/T

Supply Ability : 10000pcs/month

Delivery Time : 3workdays

Packaging Details : carton

Power supply : DC24V

Material : Steel

Verfication Accuracy : 0.03%

Verification Accuracy : III

Max. Connection number of Loadcell : 8 Loadcells (350Ω)

Communication Port : COM1:RS232;COM2:RS485

Contact Now

Mini Crane Overload Protection Controller Digital Scale Indicator With 4 to 20 Am

Main Application:
Crane[Wheel Crane, Travelling Crane,Frame Crane,Bridge Crane and so on] Overloade PRotection
Sound-light Pre-alarm for Weight Hight Limit
Delay-stop for Weight Higher Limit
Emergency-stop for Weight Highest Limit

Main Features:
1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.
2: Auto Zero Tracking
3: Load Calibration & Data Calibration
4: Definable AO/COM[Communication Port]

Technical Specifications:

Power Supply	AC24V±20%
Display	5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency	640Hz
A/D Convert	24-bit
Keypad	4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell	DC12V
Max. Connection number of Loadcell	8 Loadcells (350Ω)
[mV]Signal Input Range	0-19.5mV
DO	2 Normally Open/Closed Relays:AC250V/DC24v,1A
AO	1Analog Signal Output: 4~20mA.

Communication Port	COM1:RS232;COM2:RS485
Outline Dimension	107 × 60 × 100 mm (W×H×D)
Net Weight	Approx. 1.2kg
IP Grade	IP65

Verfication Accuracy	0.03%
Static Weighing/Force Measuring Accuracy	0.2%∼0.5%

Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name	Description
【■】	Enter Main Menu / Exit.
【8】	Enter / Save / Alarm Acknowledge.
【►】	Cursor shifts right. Display the previous option.
【▲】	Display the next interface or option. Digit input: +1 ( 0~9 loop).

Quick Operation
Key Name	Description
【■】*	* Keep the key pressed for 2 seconds: Key-locking. Key-unlocking.
【►】 (【SET】)	Setpoint parameters setting.
【▲】 (【→0←】) (【ZERO】)	[≡ZEro]: Zero Fine Adjustment without Power-down Protection. If the LED light [NZ] turns on, the operation will be invalid. [-ZEro]: Zero Calibration with Power-down Protection.

Mini Crane Overload Protection Controller Digital Scale Indicator with 4 to 20 Am

Sound-light Pre-alarm for Weight High Limit
Delay-stop for Weight Higher Limit
Emergency-stop for Weight Highest Limit

Operation Interface Diagram:
Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

Installation:

Package:
Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection
